Ductwork
Quick-Fit® Branches

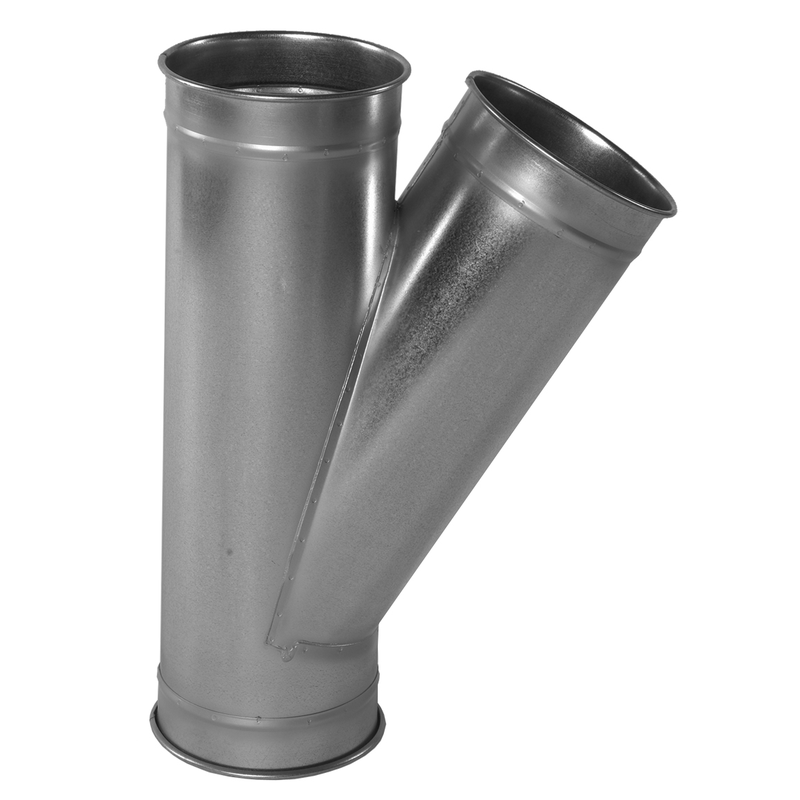

QF Branches (sometimes called “wyes” or “laterals”) are standard with QF rolled ends, allowing quick connections with other QF ductwork.
- When ordering, specify material, gauge (if nonstandard), dimensions A, B, C, end styles, and angle (standard 30° shown below, optional 45°).
- A – C ≥ C-B. Use formula to determine if a reducer is needed at C.
- Length = C X 2 + 9″
- Available in galvanized steel and 304SS (as shown below) or optional 316SS or carbon steel
- Available with flanged ends in diameters up to 72″, and other various end types
- Available with 45° angle
- Optional gauges 18, 16, 14, 12 and 10
- QF Branches, in the most commonly used sizes and material, are in stock and can typically be shipped the day after order placement. Let Nordfab or your authorized dealer know if your order is urgent.
- QF Y Branches, Double Branches, Tee Branches, and any Custom Branches are available upon request.
Contact Total Air Products for assistance with branch configurations not shown below, larger sizes, and material / gauge options.
